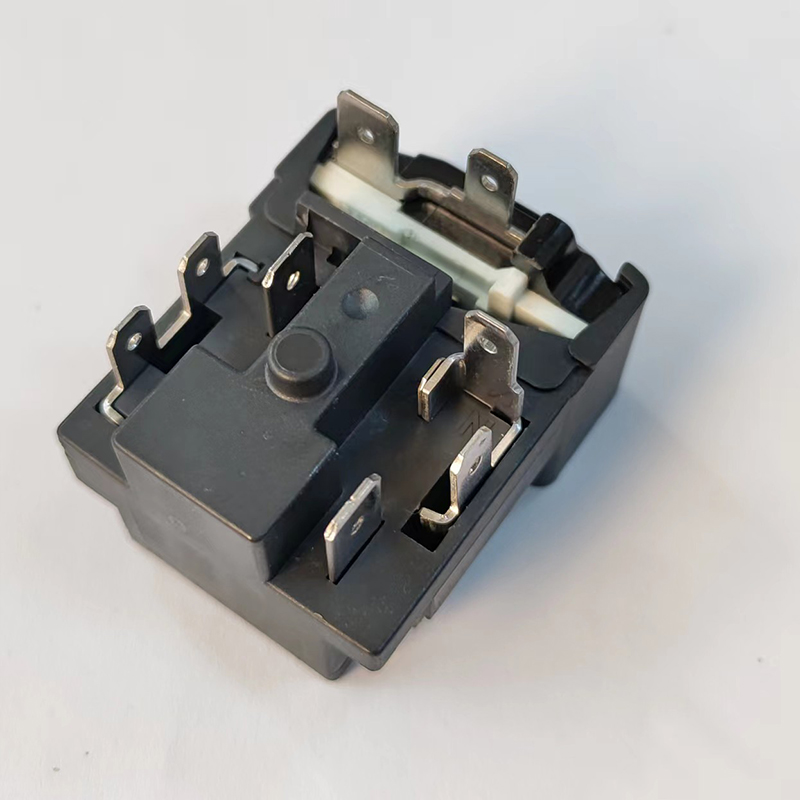

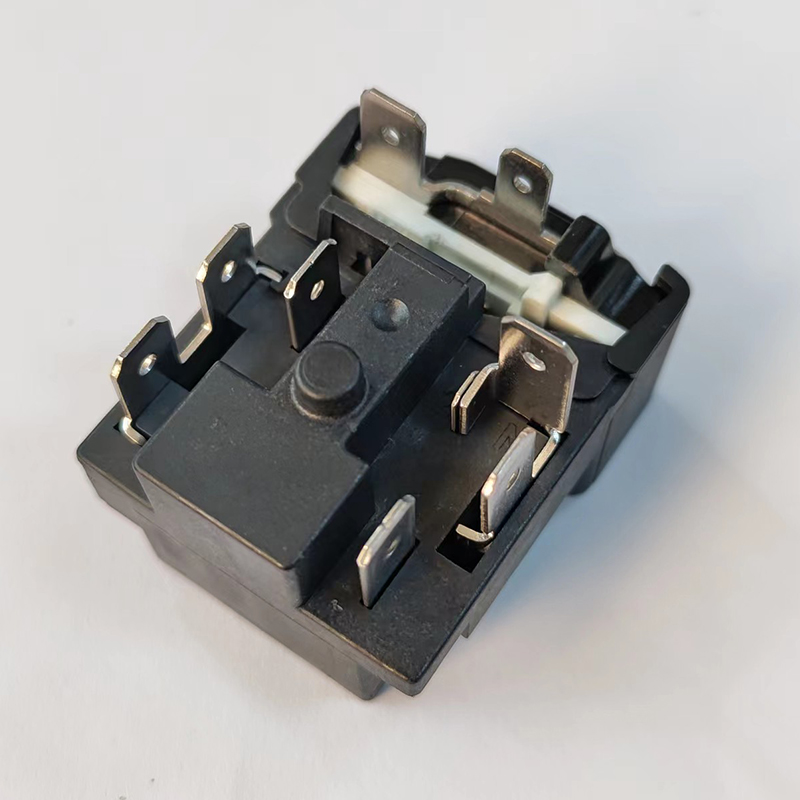

多端子组合式起动保护器
特性FEATURES
体积小、重量轻、性能可靠、低功耗、安全保护
Low profile and light weight，Highly reliable performance，low-power consumption，Safety protection
使用范围TYPICAL APPLICATION
冰箱、冷柜压缩机和其他制冷压缩机
Compressor of refrigerator and ice-cabinet，and other refrigeration compressors
触点形式 CONTACT RATING
non-contact
触点参数 CONTACT DATA
| 材料 Material |
non-contact |
|
初始接触电阻 Initial Contact Resistance |
簧片和PTC芯片间电阻≤50mΩ The resistance between spring and PTC pill≤50mΩ |
|
寿命 Service Life |
2×10⁵ 次/ops |
技术参数 CHARACTERISTICS DATA
|
规格 Type |
常温电阻 General resistance (±20%Ω) |
最大工作电压Max.voitage(V) |
最大工作电流Max.current(A) |
动作时间 Operate time(S) |
复位时间 Resume time(S) |
耐电压 With standing Voltage(S) |
功耗 Power consumption(S) |
| QPE2-*3R9 K | 3.9 | 160 | 12 | 0.2~3.5 | ≤100 | 250 | ≤0.4 |
| QPE2-*4R7 K | 4.7 | 180 | 12 | 300 | |||
| QPE2-*6R8 K | 6.8 | 200 | 10 | 315 | |||
| QPE2-*15 | 15 | 350 | 8 | 500 | |||
| QPE2-*22 | 22 | 355 | 8 | 500 | |||
| QPE2-*33 | 33 | 385 | 6 | 500 | |||
| QPE2-*47 | 47 | 400 | 5 | 560 |
型号规格标记 ORDERING DESIGNATION
|
型号 Model |
QPE2 |
|
常温芯片电阻值 General resistance of PTC pill |
4R7、15、22... |
| 压缩机起动方式 Stand for compressor starting manner | D、G |
| 端子数量 Stand for Terminal number | 1、3 |
安全特性 SAFETY CHARACTRISTICS
|
绝缘电阻 Insulation Resistance |
常态条件下，接线端子，外壳间的绝缘电阻≥500MΩ The insulation resistance among terminal,and cover should be ≥500MΩ under the general condition |
| 介质耐压 Dielectric Strength |
常态条件下，接线端子、外壳间的介质耐压AC1500V(1分钟内)，无击穿闪络现象 AC1500V one minute between terminal and cover under the general condition，no flashover shall appear. |
使用环境条件 THE ENVIRONMENI CONDITION OF APPLICATION
| 环境温度 Ambient Temperature |
-10~+43℃ |
| 相对温度 Relative humidity | ≤90％(25℃) |
|
接插形式 Mounting Options |
6.3×0.8、4.8×0.8 快速接头、screw |
|
重量 Weight |
≤30g |
| 安全认证 Safety Approval | UL、CUL、VDE、CB、CE、CQC |
